ARTA LNG Cryo Couplings

ARTA CRYOFIT LNG

ARTA is a reliable supplier of innovative and durable industrial couplings, fluid transfer equipment and sampling systems using cutting-edge solutions for more than 50 years. ARTA product portfolio includes fittings such as dry couplings, breakaway couplings, swivel joints, nozzles and sampling systems. Complete Systems can, also, be offered. ARTA products are recommended for use with hose and tube loading systems, hose towers, tankers and ships, as well as for hygienic applications. Whether onshore or offshore, ship-to-shore, ship-to-ship, or even working with aggressive or cryogenic media, you can always rely on our highly efficient couplings and customer-dedicated service.

ARTA Products

Dry Couplings ARTA

Dry Couplings

Breakaway Couplings ARTA

Breakaway Couplings

Swivel & Ball Swivel Joints ARTA

Swivel & Ball Swivel Joints

Nozzles & AR-Filler ARTA

Nozzles & AR-Filler

Sampling Systems ARTA

Sampling Systems

Industrial couplings for Oil & Gas, Marine and Cryogenic sectors

High-quality couplings ideal for use in the chemical industry. ARTA couplings possess an exceptionally impressive chemical resistance and safety when handling aggressive media.

  • Chemicals Dry Break Couplings

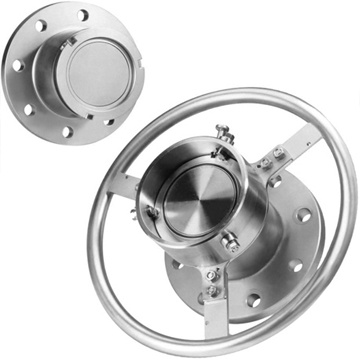

    • ASK®-C: Dry Break Coupling for liquids and gases

    • ASK®-TT: Dry Break Coupling cryogenic sector up to -328°F (-200°C)

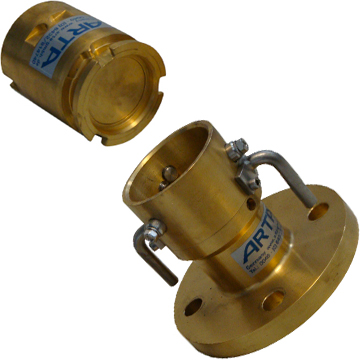

    • ASK®-CI: Dry Break Coupling for NATO STANAG 3756

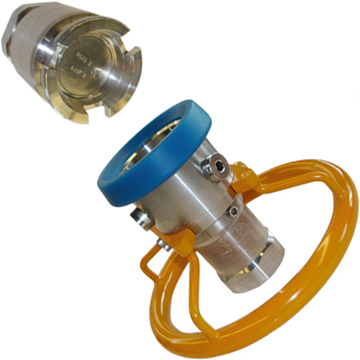

    • ASK®-GI: Dry Break Coupling for liquefied gases

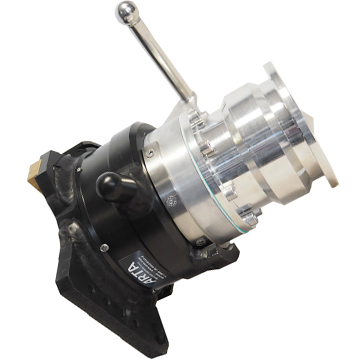

    • ASK®-API: Dry Break Coupling for bottom loading

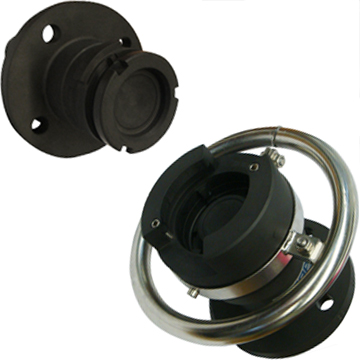

    • ASK®-KS-HD: Dry Break Coupling made of plastic for acids and alkalis

    • ADC®-C: Quick-Disconnect for liquid and granular media

    • ASK®-CP: Dry Break Coupling for hygienic applications

    • ASK®-FD: Quick-Disconnect for solids and hygienic applications

    • ADC®-CP: Quick-Disconnect for hygienic applications

    • ASK®-HD: Dry Break Coupling for liquids and gases at high pressure

  • Chemicals Filling Nozzles
    • AZV® and ZV-FIXOMAT®: Filling Nozzles
    • AR-Filler®-System
    • ZV®-CP: Filler Nozzles for Hygienic Applications
  • Chemicals Safety Breakaway Couplings
    • NTS®-SZ: Safety Breakaway Coupling with cable
    • NTS®-PI: Safety Breakaway Coupling triggered by axial tension
    • NTS®-PU: Safety Breakaway Coupling triggered by axial tension
    • NTS®-SZ-TT: Emergency Disconnect Safety System with Cable Pull for Cryogenic Temperature Range to -230°C (-382°F)
    • NTS®-SZ-CS: Emergency disconnect safety system with cable pull for aggressive media
    • NTS®-PU-M: Emergency Disconnect Safety System for Marine Applications
    • NTS®-MPC: Cryogenic Emergency Disconnect Safety System for Onshore and Offshore
  • Chemicals Swivel/Ball Swivel Joints

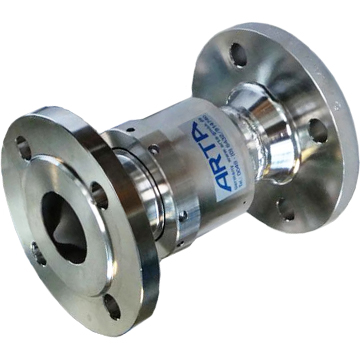

    • ADG®: Swivel Joints
    • ADG®-TT: Swivel Joint for Cryogenic Applications Down to -200° C (-328° F)
    • ADG®-M: Swivel Joint for marine applications
    • ADG-CP®: Swivel joint for hygienic applications

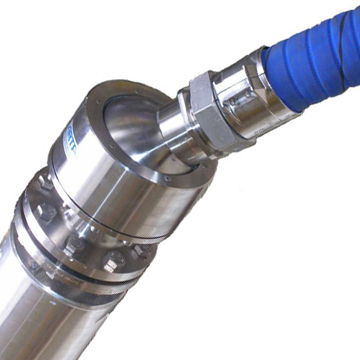

    • AGG®: Ball Swivel Joint for conveying flowing materials
  • Oil & Gas Dry Break Couplings
    • ASK®-C: Dry Break Coupling for liquids and gases
    • ASK®-TT: Dry Break Coupling cryogenic sector up to -328°F (-200°C)
    • ASK®-CI: Dry Break Coupling for NATO STANAG 3756
    • ASK®-GI: Dry Break Coupling for liquefied gases
    • ASK®-API: Dry Break Coupling for bottom loading
    • ASK®-KS-HD: Dry Break Coupling made of plastic for acids and alkalis
    • ADC®-C: Quick-Disconnect for liquid and granular media
    • ASK®-CP: Dry Break Coupling for hygienic applications
    • ASK®-FD: Quick-Disconnect for solids and hygienic applications
    • ADC®-CP: Quick-Disconnect for hygienic applications
    • ASK®-HD: Dry Break Coupling for liquids and gases at high pressure
  • Oil & Gas Filling Nozzles
    • AZV® and ZV-FIXOMAT®: Filling Nozzles

    • AR-Filler®-System

    • ZV®-CP: Filler Nozzles for Hygienic Applications

  • Oil & Gas Safety Breakaway Couplings
    • NTS®-SZ: Safety Breakaway Coupling with cable
    • NTS®-PI: Safety Breakaway Coupling triggered by axial tension
    • NTS®-PU: Safety Breakaway Coupling triggered by axial tension
    • NTS®-SZ-TT: Emergency Disconnect Safety System with Cable Pull for Cryogenic Temperature Range to -230°C (-382°F)
    • NTS®-SZ-CS: Emergency disconnect safety system with cable pull for aggressive media
    • NTS®-PU-M: Emergency Disconnect Safety System for Marine Applications
    • NTS®-MPC: Cryogenic Emergency Disconnect Safety System for Onshore and Offshore
  • Oil & Gas Swivel/Ball Swivel Joints
    • ADG®: Swivel Joints
    • ADG®-TT: Swivel Joint for Cryogenic Applications Down to -200° C (-328° F)
    • ADG®-M: Swivel Joint for marine applications
    • ADG-CP®: Swivel joint for hygienic applications
    • AGG®: Ball Swivel Joint for conveying flowing materials

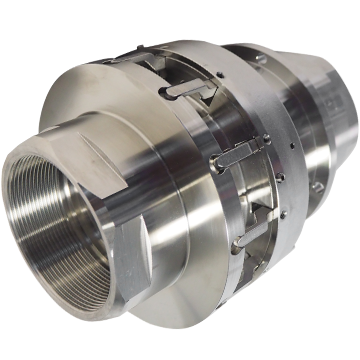

  • The NTS®-PU-M is a Marine Breakaway Coupling, also known as a Marine Breakaway Coupler or Emergency Release Coupler. Developed by our company especially for harsh marine conditions, its robustness and vigorous resistance to saltwater corrosion makes it the ideal breakaway coupling for offshore applications. The NTS®-PU-M ensures non-destructive, safe separation in hazardous situations, also allowing for rapid and easy reassembly.

ARTA Emergency Disconnect Safety Systems for Marine Applications

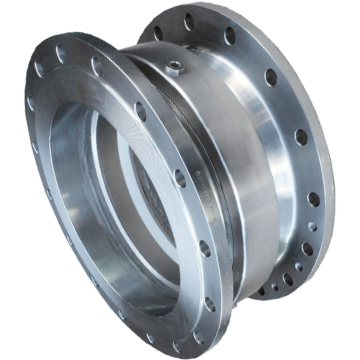

  • The ADGTM-M Swivel Joint by ARTA is designed to handle the demanding conditions found in the maritime sector, and reliably prevents torsion in hose lines and pipes, avoiding premature wear of pipe systems. The flexibility incorporated in its design permits rotational movements of different sections of the pipe in relation to each other. The ADGTM-M swivel joint is suitable for the transport of liquid, gaseous and solid media. Its robustness and resistance to saltwater corrosion make it the ideal swivel joint for salt water immersion and general marine applications.

Swivel Joint for marine applications

  • The NTS®-MPC is an extremely robust and reliable Breakaway Coupling for offshore and onshore transportation of low-temperature media such as LNG and LOX. In the event of a dangerous situation, it separates safely and non-destructively. After separation, it permits rapid, easy reassembly. The cryogenic emergency separation safety system MPC is recommended for liquid and gaseous media down to -230° Celsius or -382° Fahrenheit.

Cryogenic Emergency Disconnect Safety System for Onshore and Offshore

ARTA Couplings are designed to withstand special requirements when handling media at low temperatures. That is why we have developed a product line which is optimized for cryogenic applications. Our ARTA Cryofit Couplings are suitable for transporting media down to -230° Celsius (-382° Fahrenheit).

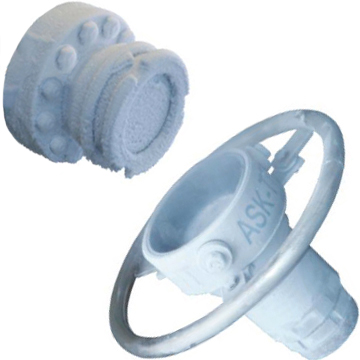

  • Dry Break Coupling cryogenic sector up to -328°F (-200°C)

The ASK®-TT dry break coupling, for low-temperature applications, handles liquid and gaseous media in suction or pressure lines. Connections can be completed without drips, safely, and environmentally friendly. It enables fast coupling and uncoupling, even with filled lines subject to working pressure. Moreover, the integrated swivel joint minimizes mechanical wear to ensure a long life-cycle. Cryogenic dry break couplings are recommended for transporting LNG, LOX, and other liquid or gaseous media down to -200° Celsius or -328° Fahrenheit, respectively.

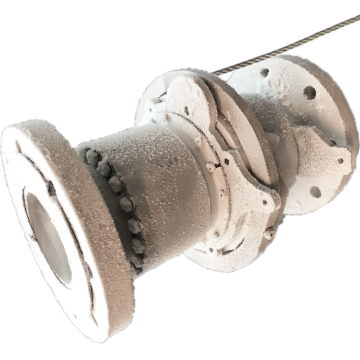

  • Emergency Disconnect Safety System with Cable Pull for Cryogenic Temperature Range to -230°C (-382°F)

The NTS-SZ-TT is a cable-release breakaway coupling utilized to transport media at low temperatures. In the event of a dangerous situation, the coupling separates in a safe, non-destructive manner. It may then be quickly and easily reassembled. Its maximum range of activation is 360° and the trigger mechanism is independent of system pressure. The cryogenic emergency disconnect safety system is recommended for the transport of LNG and LOX as well as other liquid and gaseous media down to -230° Celsius or -382° Fahrenheit.

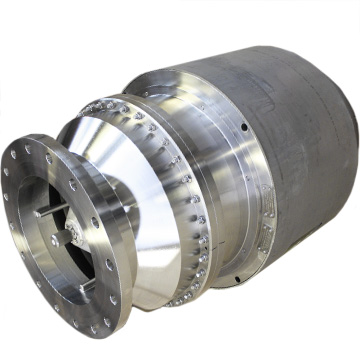

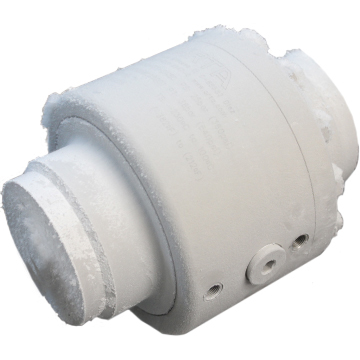

  • Swivel Joint for Cryogenic Applications Down to -200° C (-328° F)

The ARTA ADG®-TT Swivel Joint for low temperatures controls premature wear by disallowing torque within hose lines and pipelines. The design incorporates an integral flexibility that also permits different sections of the pipe to rotate in relation to each other. The cryogenic swivel joint is recommended for transporting LNG and LOX as well as other liquid and gaseous media down to -200° Celsius and -328° Fahrenheit.

  • Cryogenic Emergency Disconnect Safety System for Onshore and Offshore

The NTS®-MPC is an extremely robust and reliable Breakaway Coupling for offshore and onshore transportation of low-temperature media such as LNG and LOX. In the event of a dangerous situation, it separates safely and non-destructively. After separation, it permits rapid, easy reassembly. The cryogenic emergency separation safety system MPC is recommended for liquid and gaseous media down to -230° Celsius or -382° Fahrenheit.

  • Dry Break Coupling for hygienic applications

The ASK®-CP is a Dry Break which was specially developed for applications with high hygienic requirements, such as those found in the pharmaceutical, cosmetics and food industries. It allows spill-free, safe and environmentally friendly transport of liquid media in suction or pressure lines. The ASK®-CP makes it easy to connect and disconnect both filled and pressurized hoses and pipes.

  • Swivel joint for hygienic applications

The ADGTM-CP Swivel Joint was developed especially for hygienic applications, making it perfect for use in the pharmaceutical, cosmetics or food industry. ARTA’s ADGTM swivel joints prevent torque in hose and pipe lines, reducing early wear of piping systems. The flexibility incorporated in their design allows different pipe sections to rotate in relation to each other. They are ideal for transporting liquid, gaseous and solid media.

  • Filler Nozzles for Hygienic Applications

With its FDA-compliant design, the ZV®-CP Filler Nozzle is perfect for hygienic applications, making it the ideal filler nozzle for handling pharmaceuticals and food.

  • Quick-Disconnect for solids and hygienic applications

The ASK®-FD Quick Release Coupling permits rapid connection and disconnection of hoses and pipes. Due to its design, it can convey not only liquids but also solids such as granules. Because it is easy to clean, it is also perfect for hygienic applications. Its integrated swivel joint minimizes mechanical wear, providing a robust service life.

  • Quick-Disconnect for hygienic applications

The ADC®-CP Quick Disconnect Coupling to DIN 2828 permits the connection and disconnection of a hose line in the shortest possible time. Thanks to its gap-free and open bore design, the ADC-CP is especially suitable for hygienic applications, and is therefore ideal for use in the pharmaceutical, cosmetics or food industry.
